z20 Appliance

Purchase a z20 hardware appliance and any associated software license to receive a 30% discount on both the hardware and software price. Discounts are automatically applied in the cart.

The z20 is the largest Untangle appliance, ideal for large campuses and headquarters with 500-3,000 users*. Superior performance allows for full next-generation firewall capabilities to work seamlessly under load. Multiple high-speed interfaces, fiber connectivity, fast processing and ample memory allow this 1U rackmount appliance to support large-sized organizations while exceeding expectations for both security and performance.



Not sure which appliance is best for you? Contact us today.



Shipping outside the U.S.? See available destinations.

Get the z20

The z20 is ideal for large offices and branch locations with 500-3,000 users*.

Starting at $4,550.00 $3,185.00!


Front

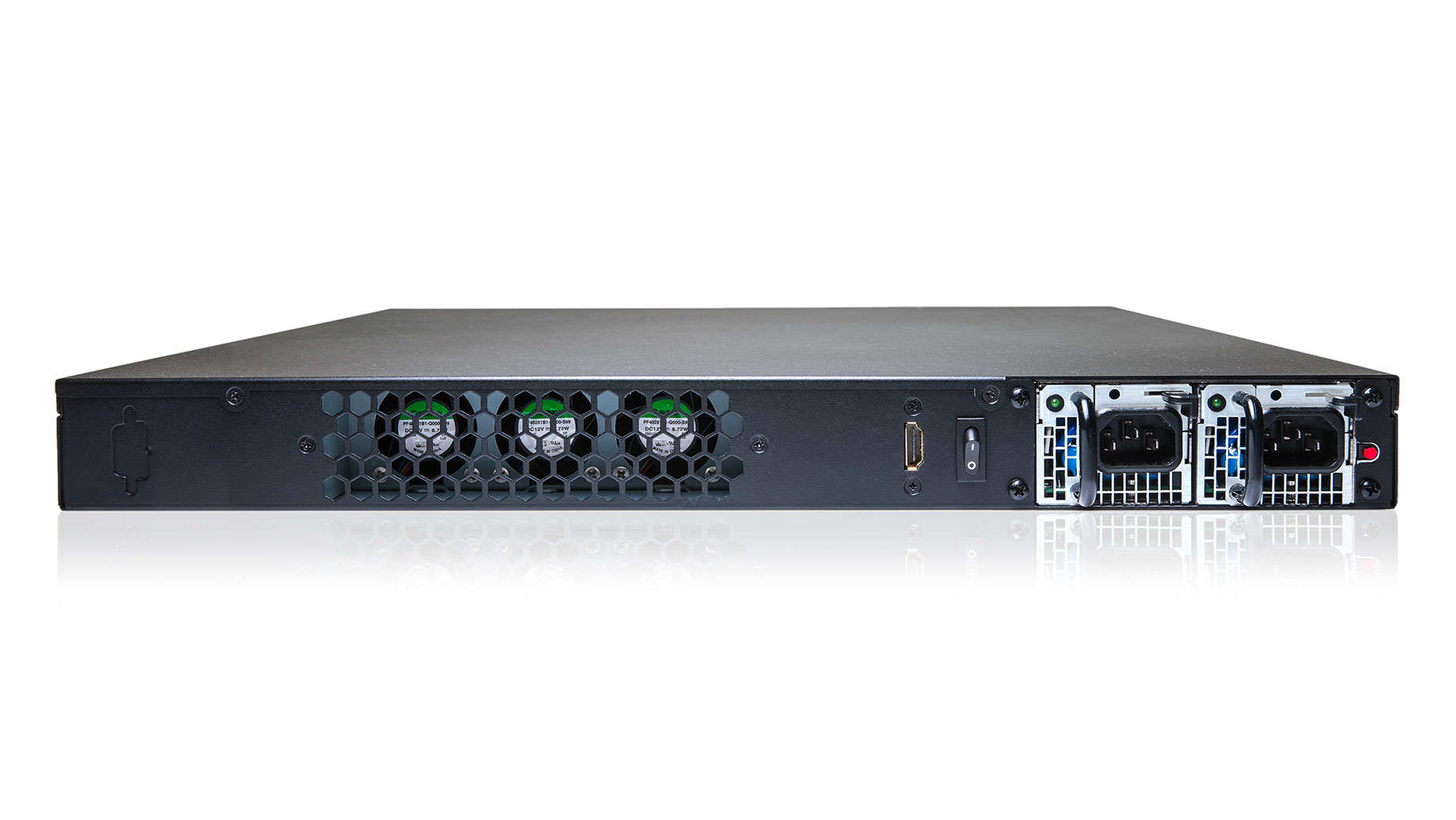

Back
360°

Tech Specs

z20
Recommended Users*500 – 3000
Recommended Devices3000+
Processor Six core Intel Xeon E-2176G
RAM32GB DDR4
Storage512 GB NVMe SSD
Interfaces17x GbE / 4x SFP+
10 Gbit Ports4
USB Ports2
Built-in LCDYes
VideoHDMI
Dimensions (w x d x h)17.2″ x 21.8″ x 1.7″ (438 x 553 x 44mm)
Unit Weight (lbs)21
Shipping Weight (lbs)32
Form Factor1U Rackmount
Firewall Throughput18.5 Gbps
NGFW Throughput22 Gbps
Operating Temperature32° – 104°F (0° – 40°C)
Power SupplyDual 300 Watt



*Assuming each user has 2-3 devices.

1 Throughput numbers are based on a single LAN to a single WAN transmission in one direction using IPerf with UDP packet size 1500.

2 NGFW throughput is measured with Application Control, IPS, Web Filter, Virus Blocker and Reports.

Ships with 2 power cables and rack mounting hardware.

Notes

  • 1U rackmount network security appliance with LCD display.

  • NG Firewall is pre-installed on the appliance and ready for license provisioning and configuration via ETM Dashboard.

  • Paid software subscription is required with purchase of an appliance. Appliance price does not include a software package.

  • Includes one year hardware warranty (three year warranty is available).

  • Live Support is included in the NG Firewall Complete software package, or as a standalone Live Support subscription.

  • Please see our Return Policy and Warranty.
